Metal trade for copper profiles,
copper plates and copper sheets

Copper is used in a wide variety of applications. In particular, its excellent conductivity in terms of electricity and heat as well as its stability make copper a popular material for a wide range of industries. Based on our more than 25 years of experience, Batz + Burgel in Augsburg is your competent metal dealer and supplier for copper. We are familiar with the various fields of application and can recommend the right solution for your requirements. Our product range includes an extensive selection of copper plates, copper sheets and copper profiles.

All items will soon be available in our online shop and can be requested there. Please note that we only deliver to commercial customers.

Copper product range

1. Copper plates and blanks

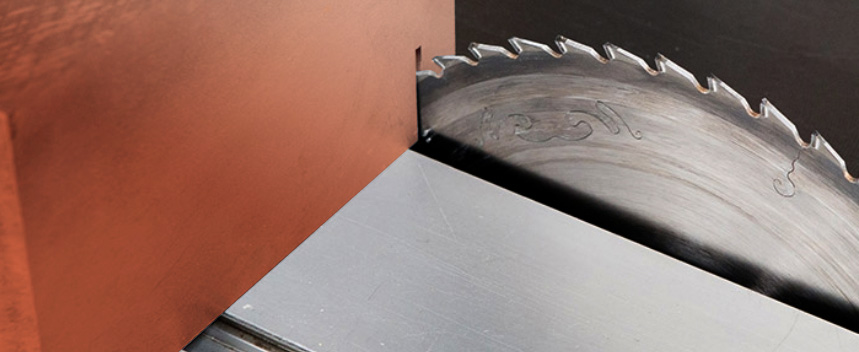

Precise cutting to millimetre: With our modern machinery, we will produce a copper plate according to your individual requirements and requirements. Even complex inquiries do not cause us any problems. In addition, we already have an extensive range of copper plates in various designs in stock. Our plates are available in thicknesses from 8 – 500 mm.

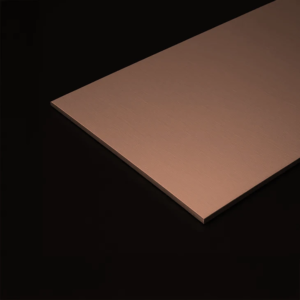

2. Copper sheets and blanks
The right copper sheet for every application: We cut the sheets to your specifications – to the millimetre. We also offer pre-deburring. Our copper sheets are available in thicknesses from 0.3 to 8 mm.

3. Copper profiles
We offer you a large selection of copper profiles. This means you can choose from an extensive range of different shapes and dimensions. Of course, we can also cut the profiles directly to the desired length.

Examples of copper profiles:

Copper sheets

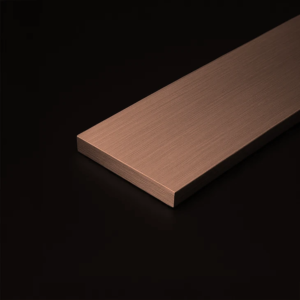

Copper flat sections

Copper semicircular profiles

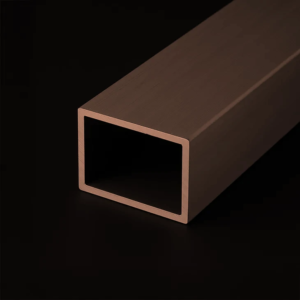

Copper rectangular tube

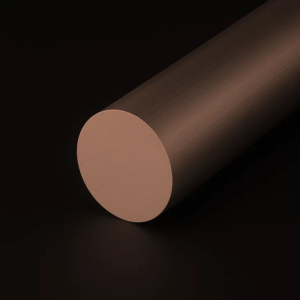

Copper round profile

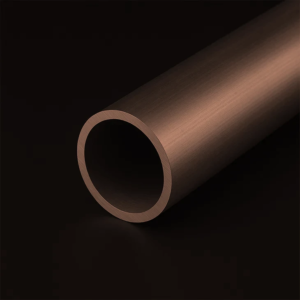

Copper round tubes

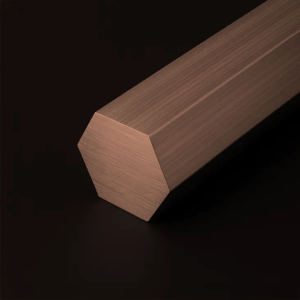

Copper hexagonal profiles

Copper T-profiles

Copper U-profiles

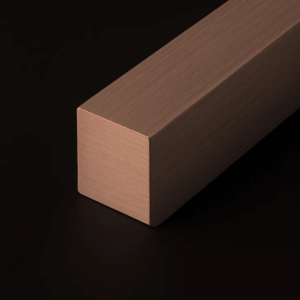

Copper square profiles

Copper square tubes

Copper angle profiles

Data sheets copper alloys

CW004A (Cu-ETP – 2.0065) (62 KB | pdf)CW004A (Cu-ETP – 2.0065)(62 KB | pdf)
This alloy is mainly used in electrical engineering due to its high conductive properties.
CW008A (Cu-OF – 2.0040) (63 KB | pdf)CW008A (Cu-OF – 2.0040)(63 KB | pdf)
This alloy is also predominantly used in electrical engineering due to its high conductive properties.
CW021A (Cu-HCP – 2.0070) (63 KB | pdf)CW021A (Cu-HCP – 2.0070)(63 KB | pdf)
Used mainly for components in electrical engineering and electronics (cable tapes, welded cables) and as plating material.
CW024A (Cu-DHP – 2.0090) (63 KB | pdf)CW024A (Cu-DHP – 2.0090)(63 KB | pdf)
Main fields of application are pipelines, roof and wall coverings (construction) and apparatus engineering.
CW103C (CuCo1Ni1Be) (63 KB | pdf)CW103C (CuCo1Ni1Be)(63 KB | pdf)
CW103C is the preferred electrode material for various welding processes, especially for stainless steels.

CW104C (CuCo2Be – 2.1285) (62 KB | pdf)CW104C (CuCo2Be – 2.1285)(62 KB | pdf)
Mainly used for spot welding electrodes, grid welding electrodes, electrode holders and roller seam electrodes for stainless steel and nickel alloys.
CW106C (CuCr1Zr – 2.1293) (63 KB | pdf)CW106C (CuCr1Zr – 2.1293)(63 KB | pdf)
Mainly used in electrical engineering and mechanical engineering as contact material and current-carrying springs, in welding and soldering technology as well as in equipment construction.
CW111C (CuNi2Si – 2.0855) (62 KB | pdf)CW111C (CuNi2Si – 2.0855)(62 KB | pdf)
Often used for pistons in cold chamber die casting machines, electrode holders for resistance welding technology, nozzles for submerged arc welding systems, as well as for ejector pins in plastic mould construction.
CW118C (CuTeP – 2.1546) (71 KB | pdf)CW118C (CuTeP – 2.1546)(71 KB | pdf)
Used especially in electronics and electrical engineering, e.g. for contacts, but also for welding torch nozzles and screws.

Your contact partner

Do you have questions about our product range, material properties or delivery times? Then do not hesitate to contact us. We are happy to help you.

Manuel Knaus

Consultancy + sales

Trade and cutting

T +49 821 27979-59
E m.knaus@batz-burgel.de
